Example 5 - Plug flow reactor yield¶
In this example, we will demonstrate how Bayesian Optimization can locate the optimal conditions for a plug flow reactor (PFR) and produce the maximum yield. The PFR model is developed for the acid-catalyzed dehydration of fructose to HMF using HCl as the catalyst.
The analytical form of the objective function is encoded in the PFR model. It is a set of ordinary differential equations (ODEs). The input parameters (X) are
T - reaction temperature (°C)
pH - reaction pH
tf - final residence time (min)
At each instance, the PFR model solves the ODEs and would return the steady state yield, i.e, the reponse Y.
The computational cost to solve the objective function is high. As a result, the trained Gaussian Process (GP) serves as an efficient surrogate model for prediction tasks.
The details of this example is summarized in the table below:
Key Item |
Description |
|---|---|
Goal |
Maximization |
Objective function |
PFR model |
Input (X) dimension |
3 |
Output (Y) dimension |
1 |
Analytical form available? |
Yes |
Acqucision function |
Expected improvement (EI) |
Initial Sampling |
Full factorial, latin hypercube or random sampling |
Next, we will go through each step in Bayesian Optimization.
1. Import nextorch and other packages¶
[11]:
import os
import sys
import time
from IPython.display import display
project_path = os.path.abspath(os.path.join(os.getcwd(), '..\..'))
sys.path.insert(0, project_path)
# Set the path for objective function
objective_path = os.path.join(project_path, 'examples', 'PFR')
sys.path.insert(0, objective_path)
import numpy as np
from nextorch import plotting, bo, doe, utils, io
2. Define the objective function and the design space¶
We import the PFR model, and wrap it in a Python function called PFR_yield as the objective function objective_func. Note that it is suggested to put the return values of the objective function as a 2D numpy matrix instead of a 1D numpy array. We use Y_real = np.expand_dims(Y_real, axis=1) to expand the output’s dimension.
The ranges of the input X are specified.
[12]:
#%% Define the objective function
from fructose_pfr_model_function import Reactor
def PFR_yield(X_real):
"""PFR model
Parameters
----------
X_real : numpy matrix
reactor parameters:
T, pH and tf in real scales
Returns
-------
Y_real: numpy matrix
reactor yield
"""
if len(X_real.shape) < 2:
X_real = np.expand_dims(X_real, axis=1) #If 1D, make it 2D array
Y_real = []
for i, xi in enumerate(X_real):
Conditions = {'T_degC (C)': xi[0], 'pH': xi[1], 'tf (min)' : 10**xi[2]}
yi, _ = Reactor(**Conditions) # only keep the first output
Y_real.append(yi)
Y_real = np.array(Y_real)
# Put y in a column
Y_real = np.expand_dims(Y_real, axis=1)
return Y_real # yield
# Objective function
objective_func = PFR_yield
#%% Define the design space
# Three input temperature C, pH, log10(residence time)
X_name_list = ['T', 'pH', r'$\rm log_{10}(tf_{min})$']
X_units = [r'$\rm ^{o}C $', '', '']
# Add the units
X_name_with_unit = []
for i, var in enumerate(X_name_list):
if not X_units[i] == '':
var = var + ' ('+ X_units[i] + ')'
X_name_with_unit.append(var)
# One output
Y_name_with_unit = 'Yield %'
# combine X and Y names
var_names = X_name_with_unit + [Y_name_with_unit]
# Set the operating range for each parameter
X_ranges = [[140, 200], # Temperature ranges from 140-200 degree C
[0, 1], # pH values ranges from 0-1
[-2, 2]] # log10(residence time) ranges from -2-2
# Set the reponse range
Y_plot_range = [0, 50]
# Get the information of the design space
n_dim = len(X_name_list) # the dimension of inputs
n_objective = 1 # the dimension of outputs
3. Define the initial sampling plan¶
Here we compare 3 sampling plans with the same number of sampling points:
Full factorial (FF) design with levels of 4 and 64 points in total.
Latin hypercube (LHC) design with 10 initial sampling points, and 54 more Bayesian Optimization trials
Completely random (RND) samping with 64 points
The initial reponse in a real scale Y_init_real is computed from the helper function bo.eval_objective_func(X_init, X_ranges, objective_func), given X_init in unit scales. It might throw warning messages since the model solves some edge cases of ODEs given certain input combinations.
[13]:
#%% Initial Sampling
# Full factorial design
n_ff_level = 4
n_total = n_ff_level**n_dim
X_ff = doe.full_factorial([n_ff_level, n_ff_level, n_ff_level])
# Get the initial responses
Y_ff = bo.eval_objective_func(X_ff, X_ranges, objective_func)
# Latin hypercube design with 10 initial points
n_init_lhc = 10
X_init_lhc = doe.latin_hypercube(n_dim = n_dim, n_points = n_init_lhc, seed= 1)
# Get the initial responses
Y_init_lhc = bo.eval_objective_func(X_init_lhc, X_ranges, objective_func)
# Completely random design
X_rnd = doe.randomized_design(n_dim=n_dim, n_points=n_total, seed=1)
# Get the responses
Y_rnd = bo.eval_objective_func(X_rnd, X_ranges, objective_func)

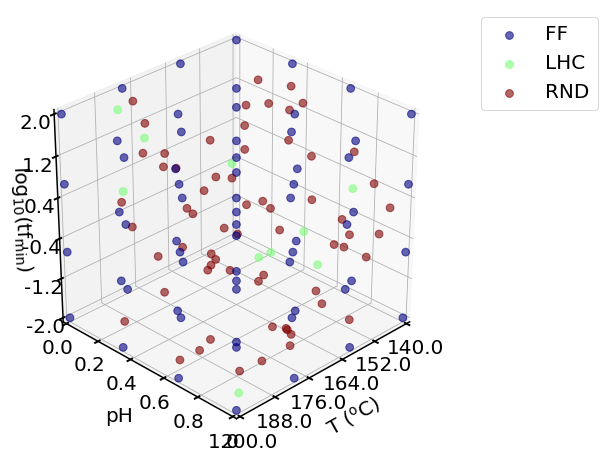

# Compare the 3 sampling plans
plotting.sampling_3d([X_ff, X_init_lhc, X_rnd],
X_names = X_name_with_unit,
X_ranges = X_ranges,
design_names = ['FF', 'LHC', 'RND'])
4. Initialize an Experiment object¶
Next, we initialize 3 Experiment objects for FF, LHC and random sampling, respectively. We also set the objective function and the goal as maximization.
We will train 3 GP models. Some progress status will be printed out.
[14]:
#%% Initialize an Experiment object
# Set its name, the files will be saved under the folder with the same name
Exp_ff = bo.Experiment('PFR_yield_ff')
# Import the initial data
Exp_ff.input_data(X_ff, Y_ff, X_ranges = X_ranges, unit_flag = True)
# Set the optimization specifications
# here we set the objective function, minimization by default
Exp_ff.set_optim_specs(objective_func = objective_func,
maximize = True)
# Set its name, the files will be saved under the folder with the same name
Exp_lhc = bo.Experiment('PFR_yield_lhc')
# Import the initial data
Exp_lhc.input_data(X_init_lhc, Y_init_lhc, X_ranges = X_ranges, unit_flag = True)
# Set the optimization specifications
# here we set the objective function, minimization by default
Exp_lhc.set_optim_specs(objective_func = objective_func,
maximize = True)
# Set its name, the files will be saved under the folder with the same name
Exp_rnd = bo.Experiment('PFR_yield_rnd')
# Import the initial data
Exp_rnd.input_data(X_rnd, Y_rnd, X_ranges = X_ranges, unit_flag = True)
# Set the optimization specifications
# here we set the objective function, minimization by default
Exp_rnd.set_optim_specs(objective_func = objective_func,
maximize = True)
Iter 10/100: 1.5686978101730347
Iter 20/100: 1.4323296546936035
Iter 30/100: 1.2134912014007568
Iter 40/100: 0.7860245108604431
Iter 50/100: 0.7257839441299438
Iter 10/100: 2.1498355865478516
Iter 20/100: 2.020167589187622
Iter 30/100: 1.9116523265838623
Iter 40/100: 1.810738205909729
Iter 10/100: 1.5580168962478638
Iter 20/100: 1.4106810092926025
Iter 30/100: 1.1793935298919678
Iter 40/100: 0.8040145039558411
5. Run trials¶
We perform 54 more Bayesian Optimization trials for the LHC design using the default acquisition function (Expected Improvement (EI)).
[15]:
#%% Optimization loop
# Set the number of iterations
n_trials_lhc = n_total - n_init_lhc
for i in range(n_trials_lhc):
# Generate the next experiment point
X_new, X_new_real, acq_func = Exp_lhc.generate_next_point()
# Get the reponse at this point
Y_new_real = objective_func(X_new_real)
# or
# Y_new_real = bo.eval_objective_func(X_new, X_ranges, objective_func)
# Retrain the model by input the next point into Exp object
Exp_lhc.run_trial(X_new, X_new_real, Y_new_real)
Iter 10/100: 1.7697422504425049
Iter 20/100: 1.7688804864883423
Iter 10/100: 1.7285405397415161
Iter 20/100: 1.7251774072647095
Iter 30/100: 1.724414348602295
Iter 40/100: 1.7239428758621216
Iter 10/100: 1.7716680765151978
Iter 20/100: 1.7642356157302856
Iter 30/100: 1.7632038593292236
Iter 10/100: 1.736713171005249
Iter 10/100: 1.6159178018569946
Iter 10/100: 1.541394591331482
Iter 10/100: 1.463523268699646
Iter 10/100: 1.358145833015442
Iter 10/100: 0.9404640197753906
Iter 20/100: 0.9380767345428467
Iter 10/100: 0.7795146703720093
Iter 10/100: 0.7422641515731812
Iter 20/100: 0.7413120269775391
Iter 30/100: 0.7410898208618164
Iter 10/100: 0.7823007702827454
Iter 20/100: 0.7810778021812439
Iter 30/100: 0.7806760668754578
Iter 10/100: 0.8384299278259277
Iter 10/100: 0.8313624858856201
Iter 20/100: 0.8311166763305664
Iter 10/100: 0.6713908314704895
Iter 10/100: 0.6647385954856873
Iter 20/100: 0.6646579504013062
Iter 10/100: 0.6817567348480225
Iter 20/100: 0.6811261773109436
Iter 10/100: 0.5426350235939026
Iter 20/100: 0.5421074032783508
Iter 10/100: 0.41655343770980835
Iter 10/100: 0.31734979152679443
Iter 20/100: 0.317130982875824
Iter 10/100: 0.4728565812110901
Iter 20/100: 0.4691459536552429
Iter 30/100: 0.4682937562465668
Iter 10/100: 0.47978702187538147
Iter 20/100: 0.4793773293495178
Iter 30/100: 0.47915202379226685
Iter 10/100: 0.45787838101387024
Iter 20/100: 0.45754683017730713
Iter 10/100: 0.4820250868797302
Iter 20/100: 0.481504887342453
C:\Users\yifan\Anaconda3\envs\torch\lib\site-packages\scipy\integrate\_ode.py:1182: UserWarning: dopri5: larger nsteps is needed
self.messages.get(istate, unexpected_istate_msg)))
Iter 10/100: 0.5026893019676208
Iter 20/100: 0.5023985505104065
Iter 10/100: 0.510124921798706
Iter 10/100: 0.4373466968536377
Iter 20/100: 0.437200129032135
Iter 10/100: 0.33615368604660034
Iter 10/100: 0.37633246183395386
Iter 10/100: 0.4235653877258301
Iter 10/100: 0.4237906336784363
Iter 10/100: 0.5078677535057068
Iter 20/100: 0.5071730017662048
Iter 10/100: 0.5106713771820068
Iter 10/100: 0.4835512936115265
Iter 10/100: 0.4513150155544281
Iter 10/100: 0.4023396074771881
Iter 10/100: 0.4127748906612396
Iter 10/100: 0.3913898468017578
Iter 10/100: 0.35759228467941284
Iter 20/100: 0.35730284452438354
Iter 10/100: 0.31954675912857056
Iter 20/100: 0.3191703259944916
Iter 10/100: 0.30319422483444214
Iter 10/100: 0.2574177086353302
Iter 10/100: 0.2216109335422516
Iter 10/100: 0.16472913324832916
Iter 10/100: 0.10401909053325653
Iter 10/100: 0.06188894063234329
Iter 10/100: 0.011676357127726078
Iter 10/100: -0.028680723160505295
Iter 10/100: -0.07515107095241547
Iter 10/100: -0.056814830750226974
Iter 20/100: -0.05701650306582451
Iter 10/100: -0.060120660811662674
Iter 10/100: -0.06517300754785538
Iter 20/100: -0.06553532928228378
Iter 10/100: -0.09999315440654755
Iter 10/100: -0.12172150611877441
6. Visualize the final model reponses¶

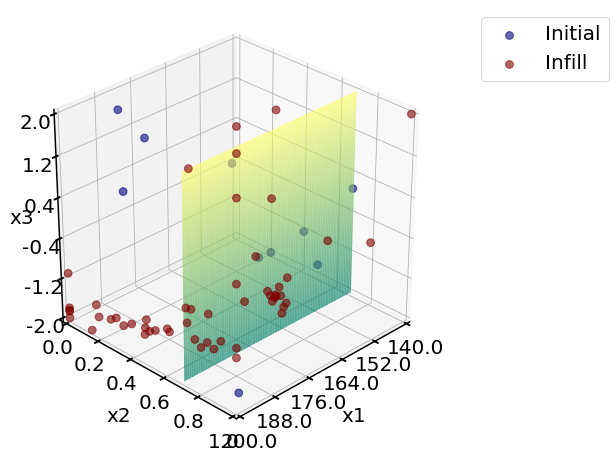

We would like to see how sampling points scattered in the 3D space. A 2D slices of the 3D space is visualized below at a fixed x value .
[16]:
#%% plots
# Check the sampling points
# Final lhc Sampling
x2_fixed_real = 0.7 # fixed x2 value
x_indices = [0, 2] # 0-indexing, for x1 and x3
print('LHC sampling points')
plotting.sampling_3d_exp(Exp_lhc,
slice_axis = 'y',
slice_value_real = x2_fixed_real)

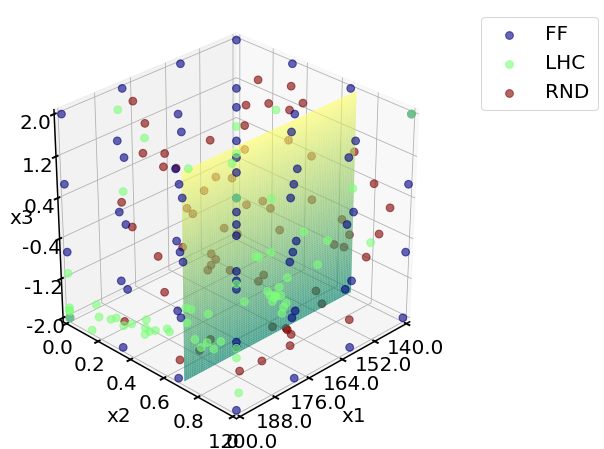

# Compare 3 sampling plans
print('Comparing 3 plans: ')
plotting.sampling_3d([Exp_ff.X, Exp_lhc.X, Exp_rnd.X],
X_ranges = X_ranges,
design_names = ['FF', 'LHC', 'RND'],
slice_axis = 'y',
slice_value_real = x2_fixed_real)
LHC sampling points
Comparing 3 plans:

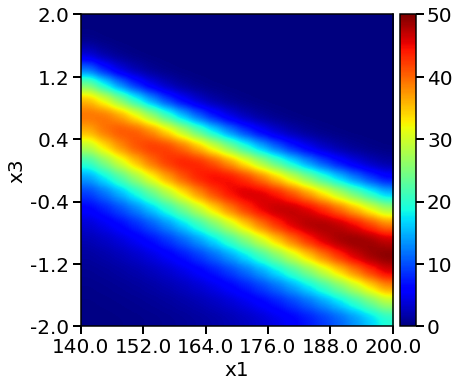

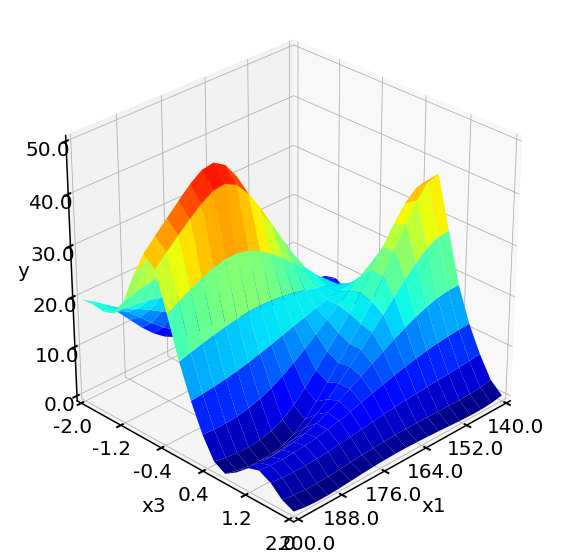

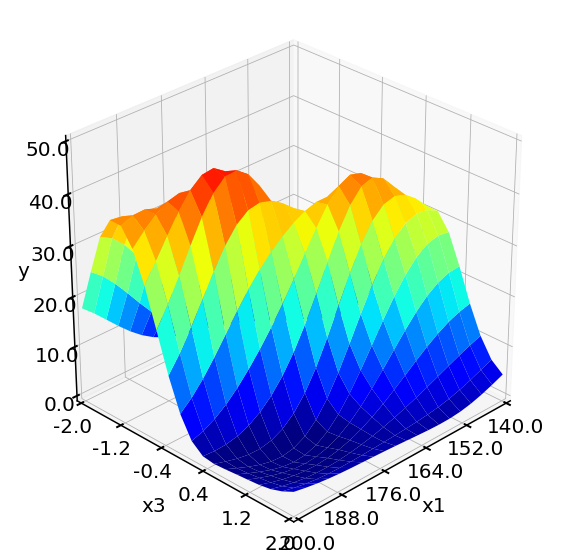

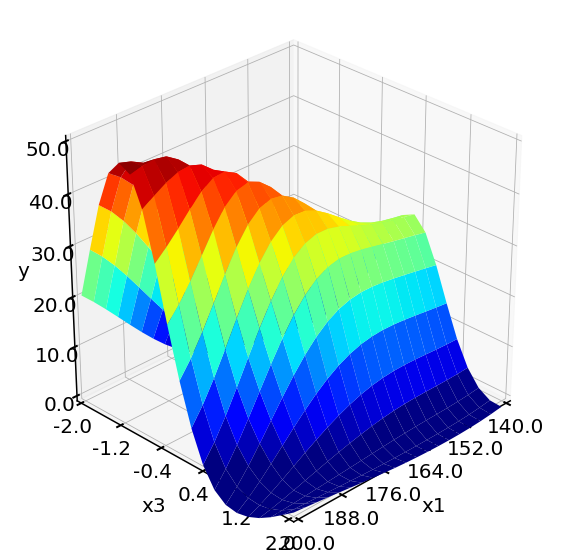

By fixing the value of pH (x2), we can plot the 2D reponse surfaces by varying T (x1) and tf (x3). It takes a long time to get the reponses from the objective function.
To create a heatmap, we generate mesh_size (by default = 41, here we set it as 20) test points along one dimension. For a 2D mesh, 20 by 20, i.e. 400 times of evaluation is needed. The following code indicates that evaluting the GP surrogate model is much faster than calling the objective function.
[17]:
# Reponse heatmaps
# Set X_test mesh size
mesh_size = 20
n_test = mesh_size**2
# Objective function heatmap
# (this takes a long time)
print('Objective function heatmap: ')
start_time = time.time()
plotting.objective_heatmap(objective_func,
X_ranges,
Y_real_range = Y_plot_range,
x_indices = x_indices,
fixed_values_real = x2_fixed_real,
mesh_size = mesh_size)
end_time = time.time()
print('Evaluation of objective function {} times takes {:.2f} min\n'.format(n_test, (end_time-start_time)/60))
# full factorial heatmap
print('Full factorial model heatmap: ')
start_time = time.time()
plotting.response_heatmap_exp(Exp_ff,
Y_real_range = Y_plot_range,
x_indices = x_indices,
fixed_values_real = x2_fixed_real,
mesh_size = mesh_size)
end_time = time.time()
print('Evaluation of FF GP model {} times takes {:.2f} min\n'.format(n_test, (end_time-start_time)/60))
# LHC heatmap
print('LHC model heatmap: ')
start_time = time.time()
plotting.response_heatmap_exp(Exp_lhc,
Y_real_range = Y_plot_range,
x_indices = x_indices,
fixed_values_real = x2_fixed_real,
mesh_size = mesh_size)
end_time = time.time()
print('Evaluation of LHC GP model {} times takes {:.2f} min\n'.format(n_test, (end_time-start_time)/60))
# random sampling heatmap
print('RND model heatmap: ')
start_time = time.time()
plotting.response_heatmap_exp(Exp_rnd,
Y_real_range = Y_plot_range,
x_indices = x_indices,
fixed_values_real = x2_fixed_real,
mesh_size = mesh_size)
end_time = time.time()
print('Evaluation of RND GP model {} times takes {:.2f} min\n'.format(n_test, (end_time-start_time)/60))
Objective function heatmap:
C:\Users\yifan\Anaconda3\envs\torch\lib\site-packages\scipy\integrate\_ode.py:1182: UserWarning: dopri5: larger nsteps is needed
self.messages.get(istate, unexpected_istate_msg)))
Evaluation of objective function 400 times takes 0.16 min
Full factorial model heatmap:
Evaluation of FF GP model 400 times takes 0.00 min
LHC model heatmap:
Evaluation of LHC GP model 400 times takes 0.00 min
RND model heatmap:
Evaluation of RND GP model 400 times takes 0.00 min
The rates can also be plotted as response surfaces in 3D.
[18]:
# Suface plots
# Objective function surface plot
#(this takes a long time)
print('Objective function surface: ')
start_time = time.time()
plotting.objective_surface(objective_func,
X_ranges,
Y_real_range = Y_plot_range,
x_indices = x_indices,
fixed_values_real = x2_fixed_real,
mesh_size = mesh_size)
end_time = time.time()
print('Evaluation of objective function {} times takes {:.2f} min\n'.format(n_test, (end_time-start_time)/60))
# full fatorial surface plot
print('LHC model surface: ')
start_time = time.time()
plotting.response_surface_exp(Exp_ff,
Y_real_range = Y_plot_range,
x_indices = x_indices,
fixed_values_real = x2_fixed_real,
mesh_size = mesh_size)
end_time = time.time()
print('Evaluation of FF GP model {} times takes {:.2f} min\n'.format(n_test, (end_time-start_time)/60))
# LHC surface plot
print('Full fatorial model surface: ')
start_time = time.time()
plotting.response_surface_exp(Exp_lhc,
Y_real_range = Y_plot_range,
x_indices = x_indices,
fixed_values_real = x2_fixed_real,
mesh_size = mesh_size)
end_time = time.time()
print('Evaluation of LHC GP model {} times takes {:.2f} min\n'.format(n_test, (end_time-start_time)/60))
# random sampling surface plot
print('RND model surface: ')
start_time = time.time()
plotting.response_surface_exp(Exp_rnd,
Y_real_range = Y_plot_range,
x_indices = x_indices,
fixed_values_real = x2_fixed_real,
mesh_size = mesh_size)
end_time = time.time()
print('Evaluation of RND GP model {} times takes {:.2f} min\n'.format(n_test, (end_time-start_time)/60))
Objective function surface:
Evaluation of objective function 400 times takes 0.16 min
LHC model surface:
Evaluation of FF GP model 400 times takes 0.00 min
Full fatorial model surface:
Evaluation of LHC GP model 400 times takes 0.00 min
RND model surface:
Evaluation of RND GP model 400 times takes 0.00 min
7. Export the optimum¶
Compare two plans in terms optimum discovered in each trial.
[19]:

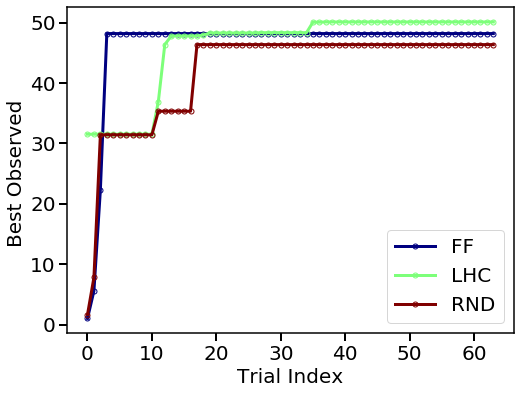

plotting.opt_per_trial([Exp_ff.Y_real, Exp_lhc.Y_real, Exp_rnd.Y_real],
design_names = ['FF', 'LHC', 'RND'])
Obtain the optimum from each method.
[20]:
# full factorial optimum
y_opt_ff, X_opt_ff, index_opt_ff = Exp_ff.get_optim()
data_opt_ff = io.np_to_dataframe([X_opt_ff, y_opt_ff], var_names)
print('From full factorial design, ')
display(data_opt_ff)
# lhc optimum
y_opt_lhc, X_opt_lhc, index_opt_lhc = Exp_lhc.get_optim()
data_opt_lhc = io.np_to_dataframe([X_opt_lhc, y_opt_lhc], var_names)
print('From LHC + Bayesian Optimization, ')
display(data_opt_lhc)
# random sampling optimum
y_opt_rnd, X_opt_rnd, index_opt_rnd = Exp_rnd.get_optim()
data_opt_rnd = io.np_to_dataframe([X_opt_rnd, y_opt_rnd], var_names)
print('From random sampling, ')
display(data_opt_rnd)
From full factorial design,
| T ($\rm ^{o}C $) | pH | $\rm log_{10}(tf_{min})$ | Yield % | |
|---|---|---|---|---|
| 0 | 200.0 | 0.0 | -2.0 | 48.179909 |
From LHC + Bayesian Optimization,
| T ($\rm ^{o}C $) | pH | $\rm log_{10}(tf_{min})$ | Yield % | |
|---|---|---|---|---|
| 0 | 200.0 | 0.0 | -1.843421 | 50.101679 |
From random sampling,
| T ($\rm ^{o}C $) | pH | $\rm log_{10}(tf_{min})$ | Yield % | |
|---|---|---|---|---|
| 0 | 180.730132 | 0.211628 | -0.937813 | 46.353722 |
From above plots, we see the response surface produced by LHC + Bayesian Optimization is more accurate and resembles the one from the objective function. The method also locates a higher yield value compared to designs. We can conclude that LHC + Bayesian Optimization is efficient in locating the optimum and produce accurate surrogate models at affordable computational cost.
References:¶
Desir, P.; Saha, B.; Vlachos, D. G. Energy Environ. Sci. 2019.
Swift, T. D.; Bagia, C.; Choudhary, V.; Peklaris, G.; Nikolakis, V.; Vlachos, D. G. ACS Catal. 2014, 4 (1), 259–267
The PFR model can be found on GitHub: https://github.com/VlachosGroup/Fructose-HMF-Model
Thumbnail of this notebook
